FW-12 Panel

Home / Products / Wall, Soffit, Ceiling and Fascia Panel Systems / FW-12 Panel
Colors

Standard

Sierra Tan
Shasta White
Parchment
Almond
Buckskin
Medium Bronze
Aged Bronze
Copper Brown
Dark Bronze
Terra-Cotta
Deep Red
Colonial Red
Burgandy
Bristol Blue
Royal Blue
Patina Green
Hemlock Green
Teal Green
Forest Green
Evergreen
Hartford Green
Cityscape
Zinc Grey
Charcoal Grey
Matte Black

Metallic

Copper-Cote™
Champagne
Antique Copper-Cote
Preweathered Galvalume®
Lead-Cote™
Zinc-Cote™
Acrylic-Coated Galvalume®

Premium

Natural White
Award Blue

Natural

COR-TEN AZP® Raw (preview not available)
Walnut (preview not available)
Honey Walnut (preview not available)
Rosewood (preview not available)
Boston Cherry (preview not available)

Product Gallery

stucco-embossed
El-Franco-Community-Center_FW-12_02

Product Information

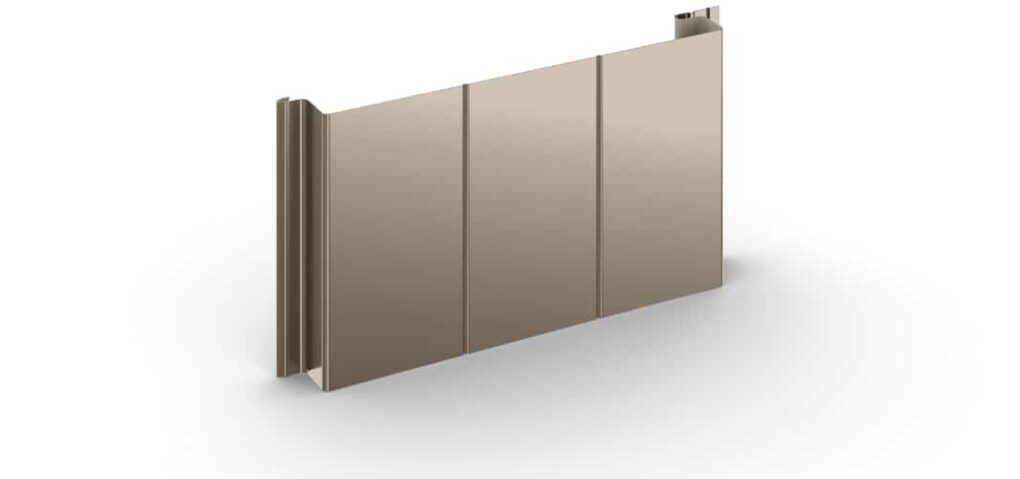

Explore boundless design possibilities with the Berridge Manufacturing FW-12 Panels, versatile prefinished metal wall panels designed for wall, soffit and liner applications. Ideal for both open framing and solid sheathing projects, these panels offer a clean and polished appearance. Crafted from durable 24- and 22-gauge steel or 0.032 and 0.040 aluminum, the FW-12 panel boasts a full 12-inch coverage, providing ample space for impactful design.

Choose from various finishes, including a smooth surface, vee-grooves, striations, venting or a stucco texture, allowing you to customize your metal panel siding or roofing project to perfection. Concealed fasteners maintain a sleek aesthetic, ensuring a professional and modern look. Applications span from vertical installations over open framing to solid sheathing and sheet metal siding, offering versatility for diverse projects. Elevate your architectural vision with these panels that blend design with longevity.

Materials

  • 24 and 22 Gauge Steel
  • 0.032 and 0.040 Aluminum

Specifications

  • Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall
  • Coverage: FW-12: 12"
  • Finishes: Smooth, optional stucco emboss
  • Fasteners: Concealed
  • Applications: Vertical over open framing or solid sheathing
  • Pattern: Optional vee-grooves, striations or venting
  • Optional: Seam lock feature

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • Vented option provides 7.79 square inches of Net Free Vent Area (NFVA) per linear foot. (BMC does not recommend vented products in applications subject to aggressive atmospheres, marine environments, or high humidity due to the corrosive nature of these environments on raw edges of steel.)
  • 22 Gauge material may require 4,500 sq minimum order
  • Requires seam-locking feature for Florida Product Approvals or Miami Dade NOA

Technical

ASTM Tests

Florida Product Approvals

Miscellaneous

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Downloads

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

General Info

Colors

Warranties

Miscellaneous

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Roll Formers

Accessories

New optional seam lock feature designed to resist panel disengagement in high winds.
