Product Information

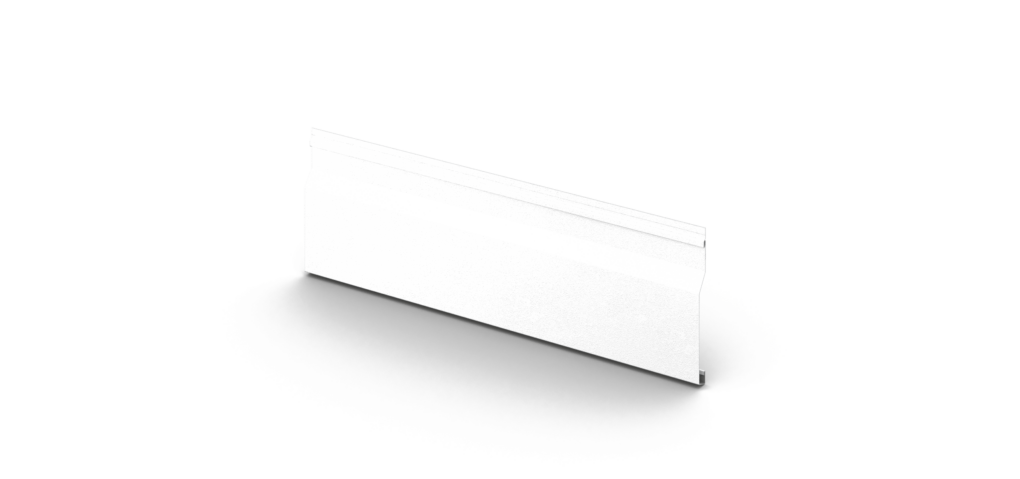

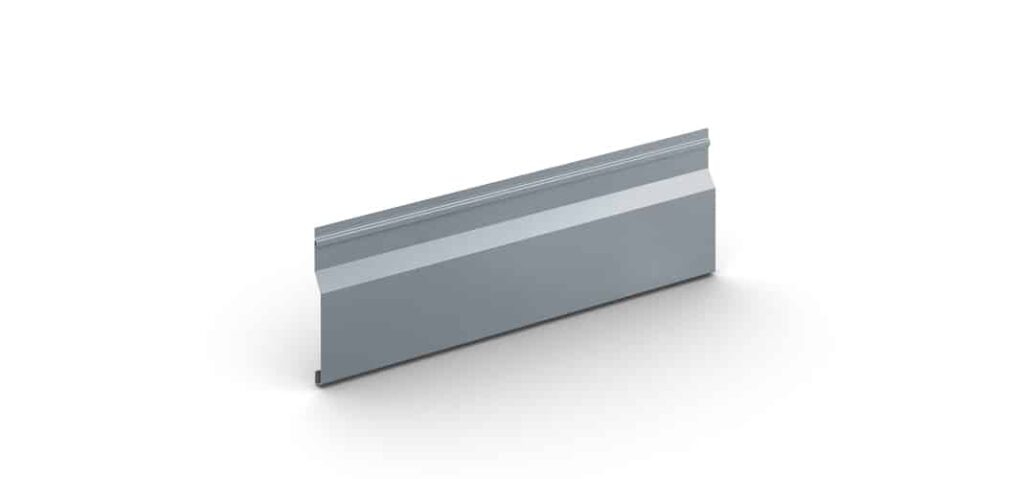

Elevate your architectural vision with the Berridge Manufacturing HS-8 and HS-12 metal wall panels, offering a perfect fusion of form and function. These panels are designed to seamlessly integrate into both horizontal and vertical wall applications, allowing for endless design possibilities. Crafted from durable 24- and 22-gauge steel or 0.032 aluminum, these panels come standard with stucco embossing, adding a touch of texture and visual interest to your spaces.
Ideal for various applications, from walls and soffits to ceilings, fascias and even screen walls or fencing systems, the HS-8 panels provide a distinctive wide rib appearance. Their versatility extends to open framing or solid sheathing installations, making them a practical choice for diverse projects.
Imagine these panels transforming a modern office facade or adding character to a chic residential exterior. The HS-8’s eight-inch coverage and unique pattern bring architectural creativity to life. With concealed fasteners and interlocking capabilities, these panels are not just a design statement but also a testament to Berridge’s commitment to innovation in construction.
Materials
- 24 and 22 Gauge Steel
- 0.032 Aluminum
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
- Coverage: HS-8 • 8"
- Finishes: Standard stucco embossing, optional smooth*
- Fasteners: Concealed
- Applications: Vertical on Fencing; horizontal or vertical over open framing or solid sheathing for other uses
- Pattern: HS-8 • 7/8" height and 5 5/8" rib with 2" reveal
Installation
- Panel is available from the factory in continuous lengths to a maximum of 30’ for embossed panels
- Interlocks with each other or HR-16
- Use siding starter strip to start panel at bottom of soffit or sill
- Use channel closure at inside and outside corners with or without rubber closures
- Use standard channel at jambs without rubber closures
- Use special channel at jambs without rubber closures
- Use HS rubber closures against air infiltration
* Contact BMC for limited material availability. Smooth finish is not available for all applications.
Technical
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Miscellaneous
-
Texas Department of Insurance Listed
