Product Information

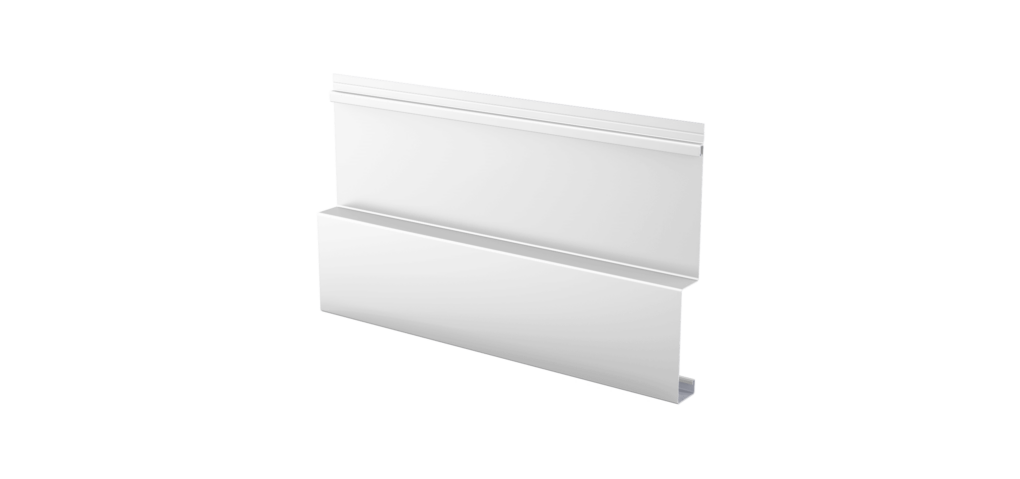

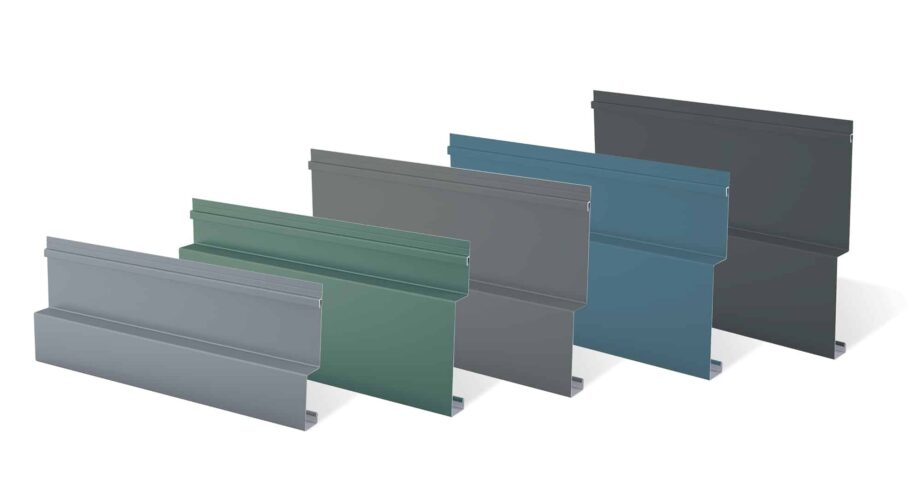

Elevate your design effortlessly with the Berridge Manufacturing Reveal Series Panels — a user-friendly concealed fastener metal wall panel designed for both horizontal and vertical applications. These panels bring simplicity and endless design possibilities to your space, seamlessly interlocking with other Berridge wall panels like BR-12, HC-16, HR-4, HR-16, HS-8 and HS-12. Crafted from durable 24- and 22-gauge steel or 0.032 and 0.040 aluminum, these metal panels for siding and roofing offer a smooth finish for a polished look.
With a generous 10 and seven-eighths-inch coverage, these panels are perfect for a variety of uses — be it vertical fencing, horizontal or vertical applications over open framing or solid sheathing, soffits, ceilings, fascias, sheet metal siding or even screen walls. Easy to install with continuous lengths up to 40 feet, Berridge Reveal Series Panels effortlessly combine functionality with style, empowering you to redefine your space with ease.
Materials
- 24 and 22 Gauge Steel
- 0.032 and 0.040 Aluminum
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
- Coverage: 10 7/8”
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Vertical on fencing; horizontal or vertical over open framing or solid sheathing
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Interlocks with BR-12, HC-16, HR-4, HR-16, HS-8, and HS-12 panels
- Use siding starter strip to start panel at bottom of soffit or sill
- Use channel closure at inside and outside corners
- Use standard channel at jambs
- Use special channel at jambs
Technical
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
