Product Information

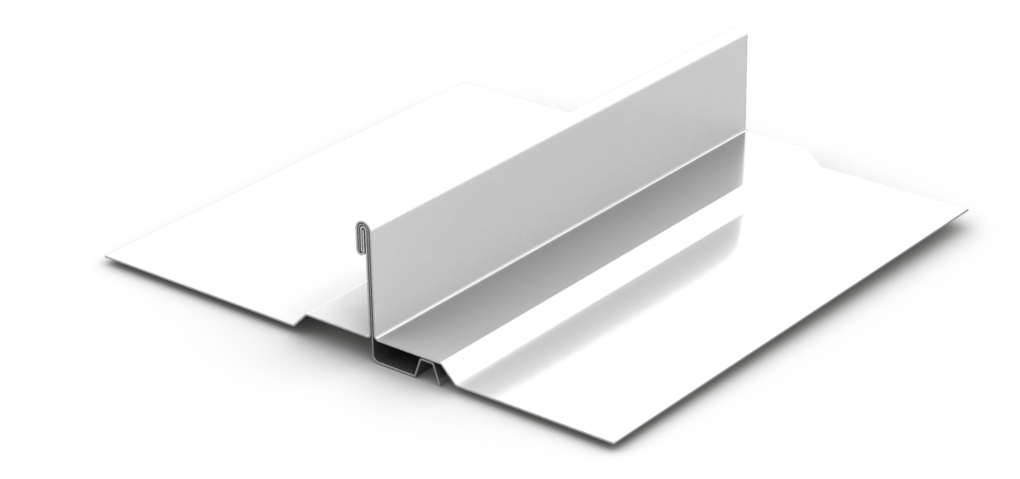

The Berridge Manufacturing Double-Lock Zee-Lock Panel stands as a testament to precision and durability in architectural metal panels, offering a 2-inch standing seam with a generous 16-inch coverage. This 180-degree mechanically seamed panel is designed for sheet metal siding, roofing and fascia applications, bringing versatility and reliability to both open framing and solid sheathing installations. Crafted from resilient 24-gauge steel or 0.032 and 0.040 aluminum, this panel is a powerhouse suitable for a spectrum of applications.
Imagine a sleek and modern residential roof adorned with the smooth finish of the Double-Lock Zee-Lock Panel, adding a touch of sophistication to contemporary homes. Alternatively, picture a commercial building facade featuring the optional striations as metal panel siding, creating a dynamic visual impact that reflects the modern aesthetic of the business within.
Installation is seamless with continuous lengths available up to 40 feet, and on-site formation is made easy with the Berridge SP-21 Roll Former. The field seaming process, executed with the Berridge Double-Lock Zee-Lock Seamer in a single pass, ensures a secure and watertight connection, guaranteeing the longevity and performance expected from Berridge metal roof and siding products.
The Double-Lock Zee-Lock Panel transcends its technical specifications to become a design element, offering architects and builders the freedom to create structures that not only stand the test of time but also make a lasting visual impression.
Materials
- 24 Gauge Steel
- 0.032 and 0.040 Aluminum
Specifications
- Uses: Roof, Fascia*
- Coverage: 16"
- Finishes: Smooth, optional striations
- Fasteners: Concealed
- Applications: Open framing, solid sheathing
- Seam: 2" 180° standing mechanically seamed sidelap
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- May be site formed in continuous lengths with the Berridge SP-21 Roll Former
- Panel is mechanically seamed in the field using the Berridge Double-Lock Zee-Lock Seamer in a single pass. The double-lock seam is not available with vinyl weatherseal
- Consult BMC for curving availability
- Continuous Zee-Rib without vinyl required
- Stainless steel floating clips are required for aluminum substrate
![](https://www.berridge.com/wp-content/uploads/2018/12/zee-lock-double-lock-panel-2.png)
Technical
UL Classifications
-
UL Wind Resistance Rated: UL-580 (Approved for Steel and Aluminum)
-
UL Wind Resistance Rated: UL-1897 (Approved for Steel and Aluminum)
-
UL Fire Resistance Rated: UL-790 (Approved for Steel and Aluminum)
-
-
-
UL Impact Resistance Rated: UL-2218 (Approved for Steel and Aluminum)
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Miscellaneous
-
-
Texas Department of Insurance Listed
